If your cheap BMW INPA K+DCAN USB interface with FTDI chip failed to install drivers or the system prompt cannot locate the drivers. Here is a little write-up on how to fix it.

  1. Bmw Inpa Xp
  2. Bmw Inpa Windows Xp

BMW INPA Download & Installed on Windows XP/7/8/10 by CD Software. BMW INPA Download by CD software, which included on K+DCAN is a car diagnostic tool cable and used for OBD diagnostic, which download the software by CD. This cable allows full diagnose of BMW from 1998 to 2008. Procedures of BMW Ediabas/INPA Win XP/Vista Installation: Step 1 – Prepare the laptop. First, you have to make a tiny change to the Windows environment variables. Scary than it sounds. INPA relies on a file called API.DLL being in a folder that is set in the. Windows “path” so you need to add the EDIABAS folder to the path. This is a great write-up of INPA BMW software and hardware (K+DCAN interface), incl.: Part 1: INPA software – inpa bmw definition – inpa 5.0.2 & 5.0.6 download – inpa software install (windows XP/7/8/10) – inpa driver software installation – inpa bmw how to use. Part 2: INPA cable – inpa k+dcan cable website.

Disclaimer:
I am using Windows 8.1 system. No sure if it works on yours. You are on your own risk.

Pre-installation caution:
Here are the INPA driver & software, free download links. If the driver/software is working, then ignore the next part. Otherwise take a look at the following part for reference.
INPA Driver: http://www.obd2vip.com/download/inpa-driver.zip（Close antivirus software or set your browser to download success）
INPA software: http://www.obd2vip.com/download/inpa-2.zip

Procedure:

Bmw

1. Open your Device Manager. Control Panel–Hardware & Sound–Device Manager.
2. Connect the INPA K+DCAN cable with computer/PC-Double click
3. Locate USB Serial Converter->DetailsDropdown Menu->Hardware IDs. The PID number is the one you want. Will most likely be 0000.
4. Download CDM v2.08.30
http://www.ftdichip.com/Drivers/CDM/CDM%20v2.08.30%20for%20Windows%208.1.zip

5. Disable “Driver signature verification” Settings–Change PC Settings–Recovery–Advanced Startup–Restart.
This will restart your PC to Advanced settings. From there: Troubleshoot–Advanced Options–Startup Settings–Restart–F7

Follow these picture guides:
Your PC will then restart with signature verification disabled. You are now able to edit the INPA drivers.

6. Unzip the Drivers file that you just downloaded and open up

Bmw

7. Open ftdibus.inf
8. Replace every PID_6001 with PID_0000 to match your hardware ID. Scan through the whole document. Then save it.
9. Then find ftdiport.inf. Do the same to ftdiport.inf

10. Back in your Device Manager double click on your OBDII cable again.
Locate USB Serial Convertor Properties->Driver->Update Driver-> Browse my computer.
Locate your driver and install. You will need to install it for both USB Serial Converter and Ports & COM.

11. Setup INPA cable as normal and run INPA software.

It seems that the white FTDI chip INPA cables have to be manually put into D-CAN mode. This file will take care of that. It is normal for the LED to go out.
http://www.mediafire.com/download/35fnrnd3q3dvf3w/D-CAN.exe
If you put the cable into DCAN mode, the LED goes off, and it says there is no adapter connected. Please connect it to the car and run the DCAN mode.

Related posts:

BMW INPA Windows XP installation guide… Here you go…The inpa ediabas software provided and the procedures proposed are intended for personal, educational and experimental use.

Note: this how-to guide here especially for Windows XP users only

For users with Windows Vista, Win 7 (32/64bit), Win 8, Win10, please go to

Bmw Inpa Xp

bmw inpa / ediabas interface: INPA K+DCAN usb cable

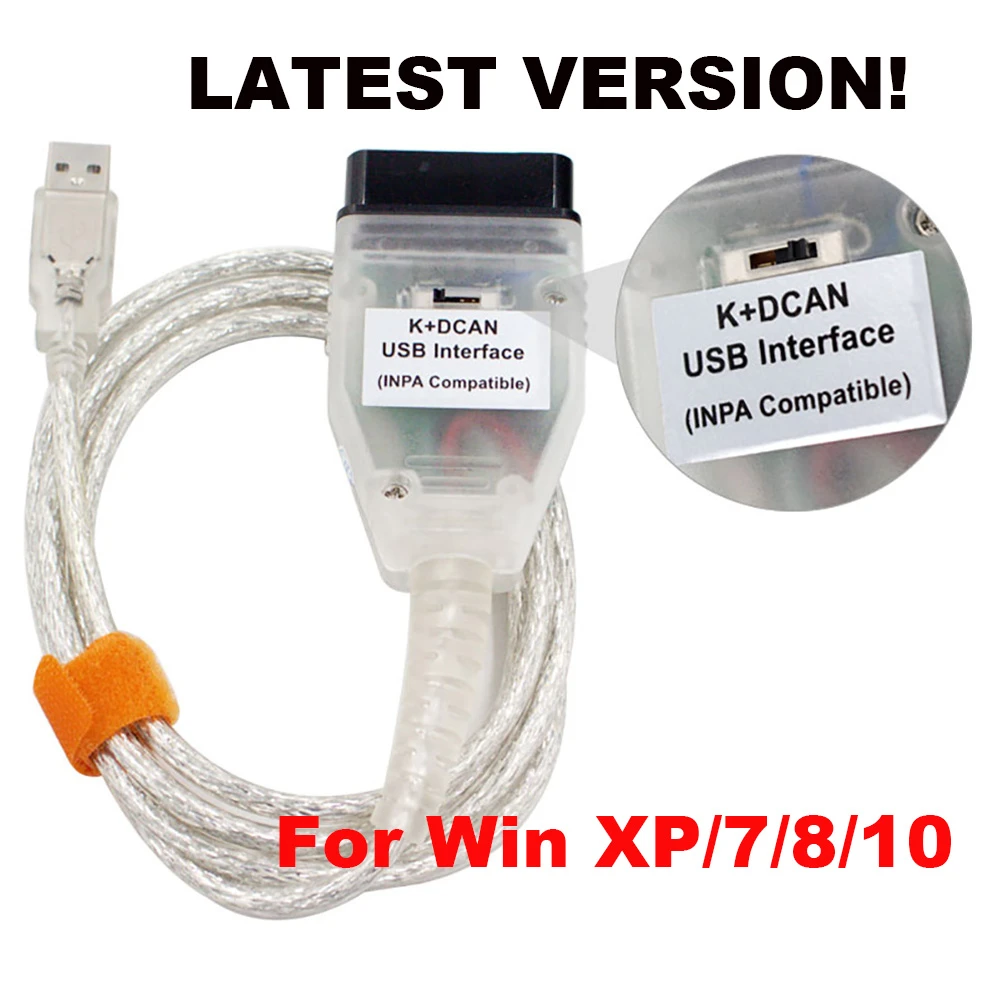

The version 2016 cable is great, designed with the FT232RQ chip and a switch to turn LEFT is for 7 pin or RIGHT for 8 pin (8 pin for K-LINE communication (old DCAN cables cannot do it) for BMW from 1998 to 2008)

k+dcan cable software: INPA 5.0.2

Running system: Windows xp

k+dcan usb interface software installation:

Step 1: Delete ALL versions of INPA-ADS from your computer or remane all INPA-ADS folders.

Bmw

For example: remane INPA into “_INPA”, EDIABAS into “_EDIABAS” and so on.

Step 2: Open folder Step_1 in the root of the CD-disk comes with the inpa cable

Copy folder EC-APPS onto disk С:

Step 3: Run file Step_1NFSEntpacktdisk1SETUP.EXE

While installing, choose User Mode

Further choose in opening windows:

  1. Parametrieren einer neuen Konfiguration ohne Daten
  2. 2. OBD
  3. Kein API-TRACE
  4. Kein IFH-TRACE
  5. Komfort (.IPO)

! RE-BOOT YOUR Computer !

Step 4: Run file Step_2INSTALLInstprog.exe

  1. Choose ENGLISH, press Continue, then press Continue again
  2. While choosing the HDD disk for initial setup

DO NOT change the location C:.

INPA installation must be on drive С: ONLY !

  1. Choose configuration BMW Group Rectification programs UK, press Continue.
  2. Activate all spare boxes with : EDIABAS 6.4.3 – UPDATE, INPA 5.0.1 – UPDATE,

NCS Expert 3.0.8 – Complete

Bmw inpa install windows xp
  1. Press Continue.

Step 5: Run file Step_3INSTALLInstprog.exe

  1. Choose ENGLISH, press Continue, then Continue again
  2. While choosing the HDD disk for initial setup.

DO NOT change the location C:.

INPA installation must be on drive С: ONLY !

  1. Choose configuration BMW Group Rectification programs UK, press Continue.
  2. Activate all spare boxes with: INPA 5.0.1 – UPDATE, NCS Expert 3.0.8 – UPDATE
  3. Press Continue.

Step 6: Find the file С:EC-APPSINPACFGDAT named inpa.ini

and replace it with the file inpa.ini that is in the root directory of CD-disk given.

Step 7: Plug the Adapter into spare USB-port and install drivers manually from the folder Driver_D_CAN_USB using Driver Wizard of your Windows XP-Service Pack-2

Step 8: Use following pictures for help.

Step 9: In Advanced field change number of COM-port to the value from 2 to 4.

Also change the value of Latency Timer from 16 to 1. Remember the number of the COM-port choosen !

Step 10: In the file EDIABAS.INI “Interface = STD:OBD” must be chosen

(That is default parameter after installing from CD-disk given. Check the parameter if you use another version of INPA !)

Step 11: In the file C:WindowsOBD.INI put the number of USB-COM-port to the value that you remembered in the step_3

Step 12: Run from CD-disk a file Driver_D_CAN_USBOBDSetup.exe

Step 13:RE-BOOT your Computer !

Step 14: Use the following order of using K+DCAN USB cable adapter:

– Plug the Adapter into spare USB-port

– Plug the Adapter into OBD-II connector of BMW

– Turn the Ignition into ON position

– Rune the soft INPA with file С:EC-APPSINPABINinpaload.exe

– Choose the model of BMW and type of modul you want to see

– Close the soft and disconnect the Adapter from USB-port each time you change the car connected

N.B.:

Bmw Inpa Xp

K+dcan adapter is already configured to work with BMW both K-line and CAN-bus.

Modes of configuration file D-CAN.exe, that is on the CD-disk given in the folder

_D_CAN_USB as follows:

BMW INPA Cable Configuration:

Bmw Inpa Windows Xp

For configuration interface:

Connect USB cable

Run D-CAN.EXE and setup CAN BUS mode.

LED should OFF

Don’t use USB Extender cable, directly connect interface to computer.
